Precision Machining Capabilities

Advanced machining, mechanical assembly, and engineering support for complex, tight-tolerance components - from prototype through production.

U.S. Department of State emblem with a blue background and the words "ITAR Registered International Traffic in Arms Regulations"
Certification badge with a globe and an airplane, indicating ISO 9001 certification for quality management systems.
SBA Woman Owned Small Business logo with a blue underline and a blue triangular shape resembling a check mark.

At Micro Facture, our machinists, engineers, production team, and quality team work together to manufacture complex components that require close tolerances and repeatability.

Based in Lancaster, Pennsylvania, we provide precision CNC machining, multi-axis turning and milling, 5-axis CNC machining, Wire EDM, automated production, and mechanical assembly for aerospace, defense, firearms, energy, semiconductor, and commercial customers.

We work with our customers from the first prototype through ongoing production, coordinating machining, qualified outside processing, inspection documentation, and assembly along the way. Everything we produce is supported by our AS9100D / ISO 9001-certified quality management system.

Red crosshair tolerance symbol on a black background.

MISSION-CRITICAL PRECISION

±0.0005″

Red outline of a computer monitor with a red arrow pointing upward and a red arrow pointing to the right, over a black background.

Part size range

0.50″–40″

An illustration of red and black geometric shaped blocks connected to form a bold, interconnected logo or design.

materials

40+

Red and black line graph showing data increasing over time, with a red arrow indicating upward trend.

volume

Prototype to production

A man working with a CNC machine in an industrial manufacturing setting.

Complex Precision machining

Our machinists use multi-axis CNC machining and Wire EDM to produce complex, tight-tolerance components for aerospace, defense, firearms, energy, and other high-reliability applications - from prototype through production.

Industrial manufacturing facility with multiple CNC machines and equipment arranged in rows.

MECHANICAL ASSEMBLY

When your project extends beyond individual parts, our team coordinates machining, qualified outside processing, assembly, inspection, and documentation. One experienced team remains involved from the first component through the finished assembly.

A copper heat pipe, a small screw, and a digital bore gauge on a white background.

Engineering Partnership

We welcome early conversations with your engineering, quality, and purchasing teams to review manufacturability, solve machining challenges, and address production or inspection concerns early.

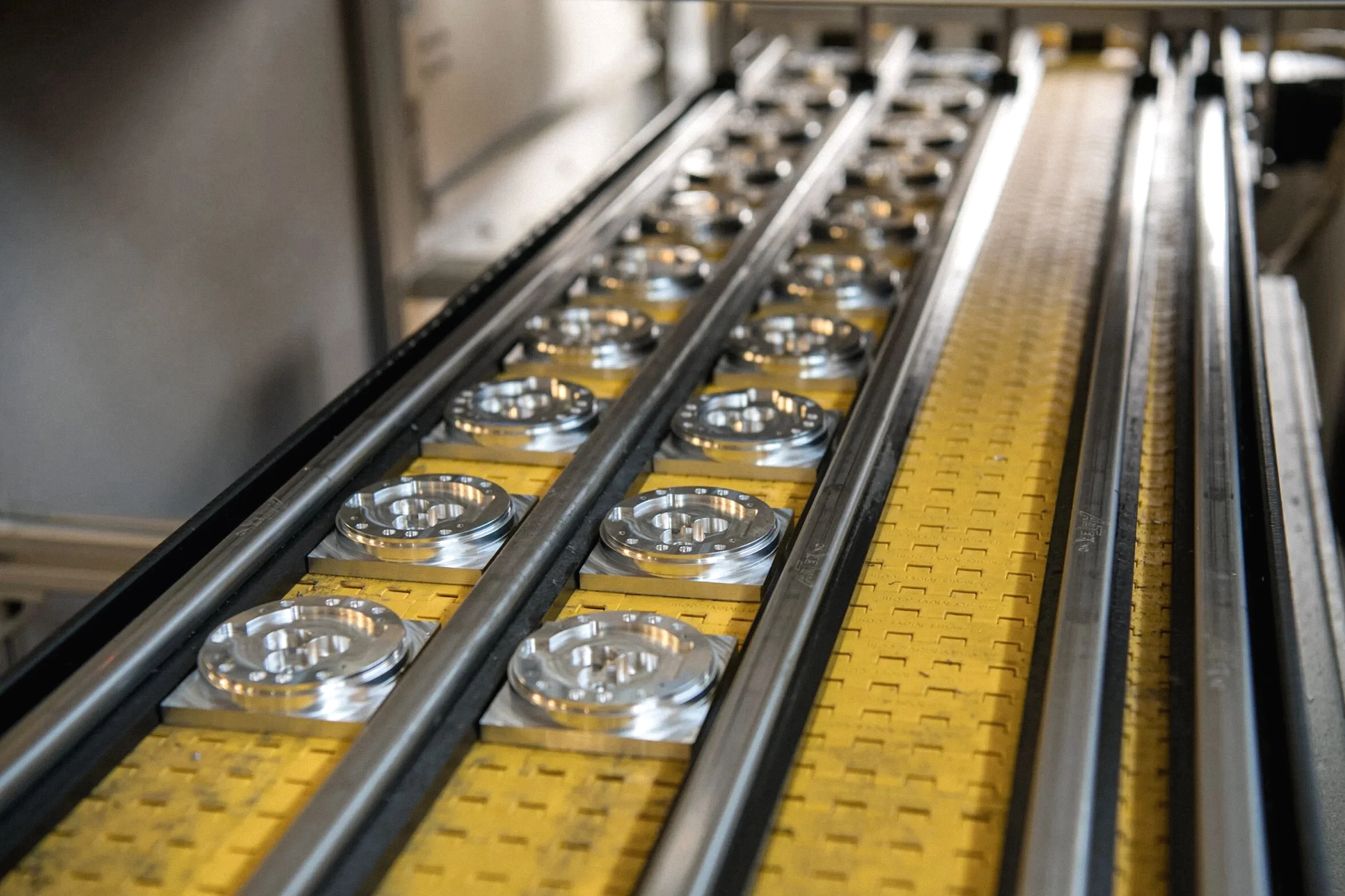

Close-up of a conveyor system transporting shiny metal components on yellow rollers in a manufacturing or industrial setting.

Prototype to Production Machining

Our goal is to earn the opportunity to grow with your program. Whether you need an initial prototype, a production launch, or long-term capacity, our team stays responsive and involved as your manufacturing needs evolve.

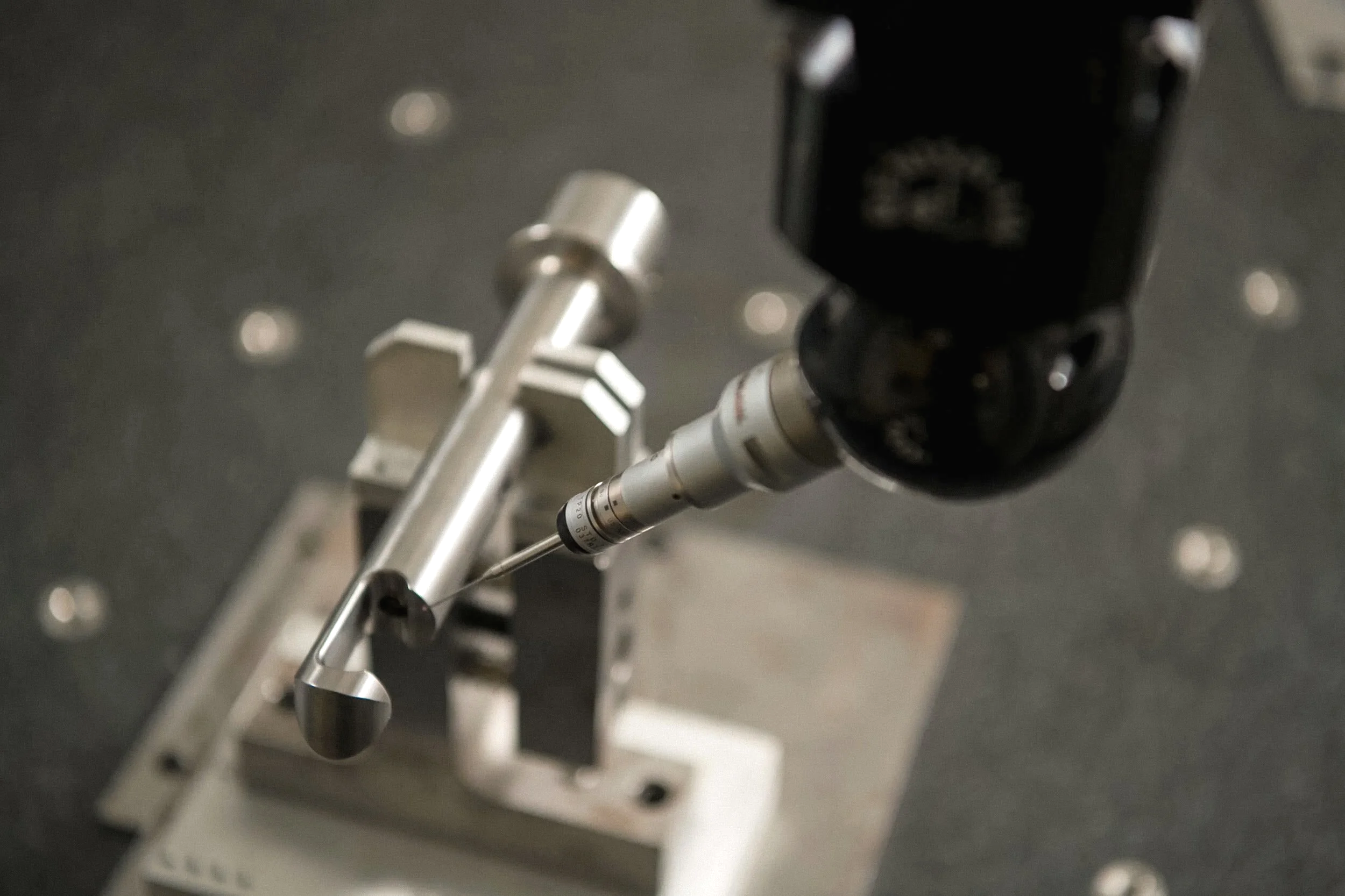

Close-up of a robotic arm with a precision instrument attached to it, mounted on a white base, on a dark speckled surface.

Mission-Ready Quality

Our production and quality teams work together to protect your requirements throughout manufacturing. Under our AS9100D / ISO 9001-certified quality system, we maintain the inspection, traceability, and documentation your program requires.

MATERIALS WE MACHINE

We machine a wide range of metals to meet the demands of mission-critical applications.

✓ ALUMINUM

✓ STAINLESS steel

✓ Alloy steels

✓ TITANIUM

✓ INCONEL

✓ COPPER

✓ BRASS

✓ AND MORE

MANUFACTURING TECHNOLOGY

Our machining, automation, and inspection equipment supports complex components from initial prototypes through repeat production.

  • Our multi-axis turning and mill/turn platforms combine turning, milling, live tooling, Y-axis machining, and sub-spindle capabilities to support complex component production.

    Equipment includes:

    • Nakamura-Tome WY-250
    • Nakamura-Tome WT-150
    • Mazak Integrex 100SY
    • Mazak Integrex 200SY
    • Mazak QT-8
    • Haas SL-10
    • Bar-loading capability

    Contact our engineering team to confirm maximum diameter, length, bar capacity, and feature requirements for your component.

  • High-speed vertical machining centers support tight-tolerance prismatic components, complex geometries, and flexible prototype-to-production manufacturing.

    Equipment includes:

    • Haas Mini Mills — 6 machines
    • Haas VF-2SSYT — 3 machines
    • Haas VF-2SS with 5-axis capability
    • Haas VF-3SS with 5-axis capability
    • Hardinge/Bridgeport 1000XP3 5-axis centers — 2 machines
    • FANUC Robodrill T21iFa 5-axis centers — 3 machines
    • FANUC Robodrill automated job-shop cells — 4 cells
    • FANUC Robodrill 5-axis job-shop cell

    Contact our engineering team to confirm work envelope, axis configuration, and tolerance requirements.

  • Electrical Discharge Machining (EDM) and small-hole EDM capabilities support intricate profiles, tight internal features, fine details, and precision components manufactured from electrically conductive materials.

    Equipment includes:

    • Sodick AQ327L Wire EDM
    • Sodick K1C Small-Hole Drilling EDM
    • Typical Wire EDM tolerance: ±0.0002″

    Wire EDM is well suited for hardened materials, complex contours, narrow slots, precision openings, and components requiring excellent dimensional control without introducing conventional cutting forces.

    Contact our engineering team to confirm work envelope, material, feature size, surface-finish, and tolerance requirements.

  • Automated machining cells support repeatability, unattended production, and scalable manufacturing for qualified repeat-production applications.

    Equipment and technologies include:

    • Three automated 5-axis, three-machine cells with System 3R robotic automation
    • Two FANUC LR Mate 200iC robots
    • FANUC Robodrill job-shop cells
    • Gantry robotic system
    • System 3R automation
    • Palletized manufacturing
    • Bar-loading capability

    Automated production strategies are developed according to component geometry, volume, inspection requirements, and program demand.

  • CMM, vision, comparator, and conventional measurement equipment support dimensional verification according to drawing, customer, and program requirements.

    Equipment includes:

    • Brown & Sharpe Gage 2000 CMM
    • Brown & Sharpe Microval CMM
    • Hexagon Global 575 DCC-CMM with PC-DMIS
    • Hexagon Micro XCEL 765 DCC-CMM with PC-DMIS
    • RAM Optical GX vision inspection system
    • Jones & Lamson 14-inch optical comparator
    • Deltronic 14-inch optical comparator
    • Rockwell hardness tester
    • Calibrated gages, micrometers, and conventional inspection equipment
    • Documented calibration system

  • In-house support equipment complements our machining and assembly operations and helps provide controlled, production-ready components.

    Equipment includes:

    • Drill presses
    • Solder-dispensing robots
    • Band saws
    • Surface grinders
    • Jig grinders
    • Honing equipment
    • Bench grinders
    • Finishing and deburring equipment
    • Ultrasonic cleaning

A satellite view of Earth with a SpaceX spacecraft in orbit emphasizing aerospace machining experience.
A satellite view of Earth with a SpaceX spacecraft in orbit emphasizing aerospace machining experience.

iNDUSTRIES WE SUPPORT

aerospace

Precision components for flight-critical and space applications.

Learn more →

Close-up of a military vehicle or armored truck emphasizing defense / military machining experience.
Close-up of a military vehicle or armored truck emphasizing defense / military machining experience.

defense

Mission-ready manufacturing for the most demanding defense programs.

Learn more →

Close-up of a black firearm with a mounted scope emphasizing firearm machining experience.

FIREARMS

Precision-machined components built for reliability and performance.

Learn more →

A large cooling tower from a power plant emphasizing energy and nuclear machining experience.

energy

Supporting power generation, nuclear, and advanced energy systems.

Learn more →

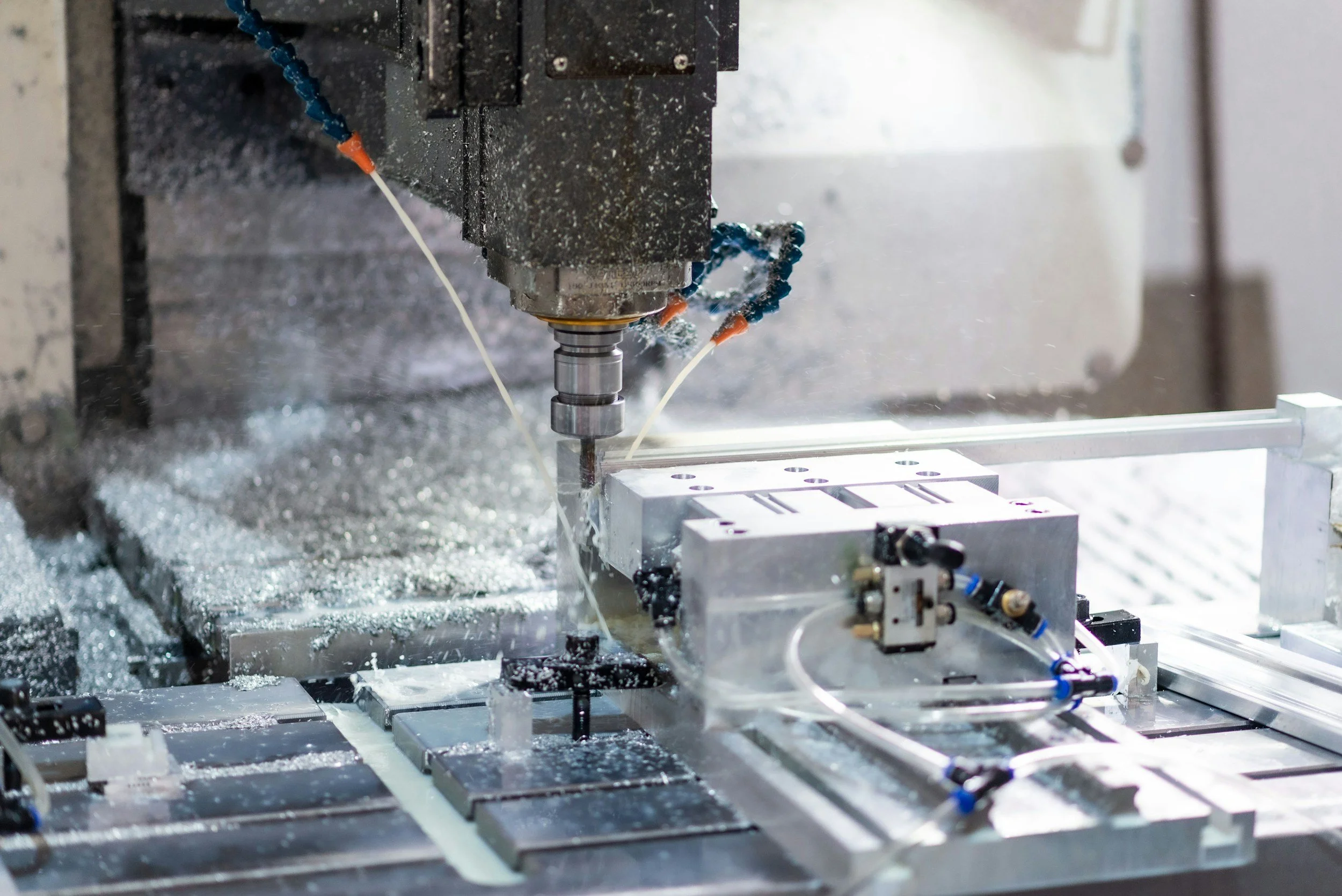

Close-up view of a CNC machine tool cutting metal, with metal shavings scattered around and coolant fluid spraying onto the workpiece emphasizing commercial machining experience.
Close-up view of a CNC machine tool cutting metal, with metal shavings scattered around and coolant fluid spraying onto the workpiece emphasizing commercial machining experience.

cOMMERCIAL

High-quality machining for industrial and OEM manufacturing.

Learn more →
